Supercharger Intercooler Kit - Audi / 3.0T / C7 / A6 / A7 / D4 A8

This Kit provides you with everything you need to professionally replace your intercoolers with GENUINE units on the 3.0T in the C7 & D4 A6, A7, A8.

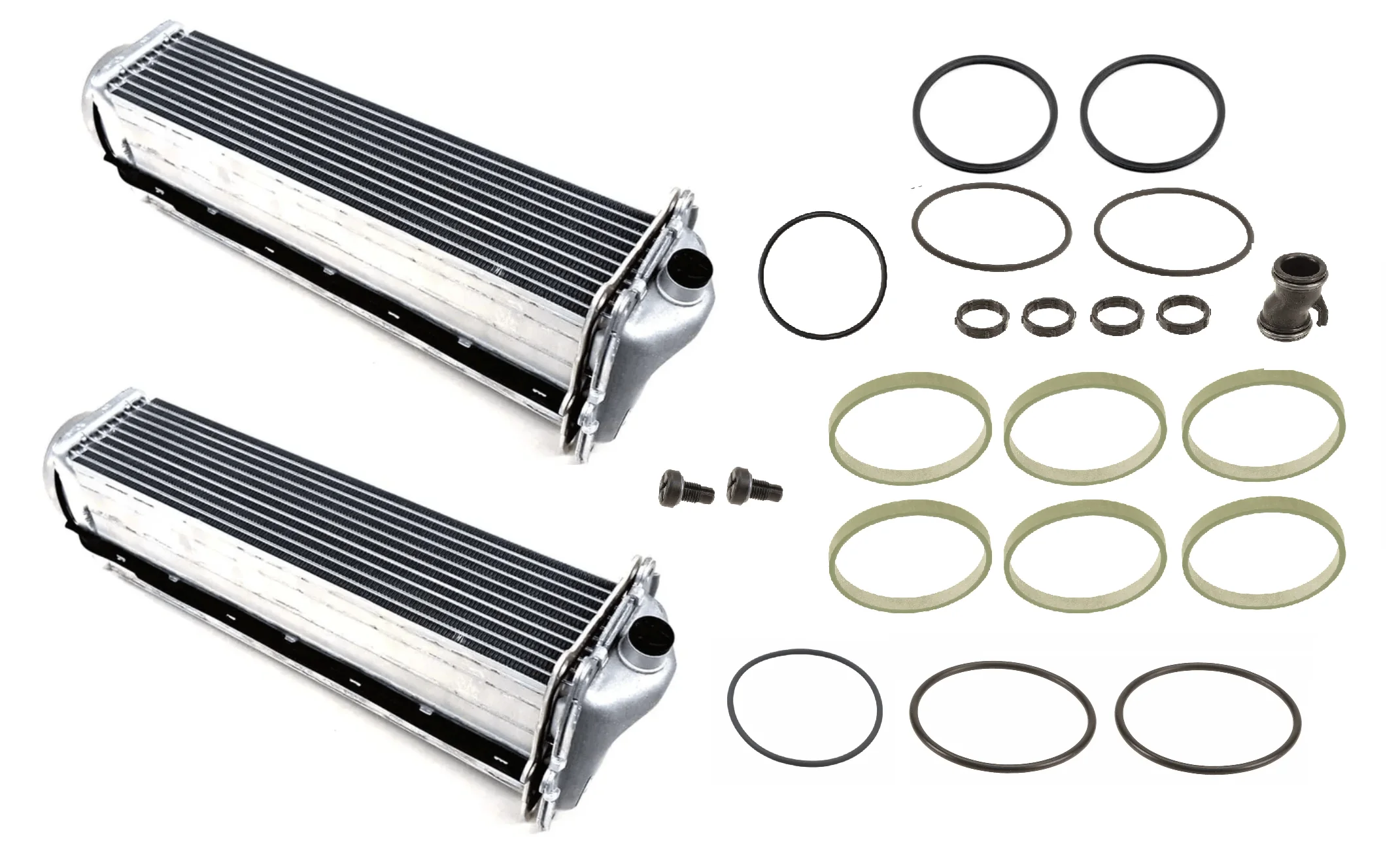

- (2) Supercharger Intercooler (VW/Audi)
- (6) Upper Intake Manifold Gaskets (VW/Audi)
- (1) PCV Valve Hose (VW/Audi)
- (4) Coolant O-Ring (VW/Audi)
- (1) Sealing Ring (Elring)
- (2) Throttle Body Gaskets (VW/Audi)
- (1) Engine Air Intake Hose Seal (VW/Audi)
- (2) Intercooler Gasket (VW/Audi)
- (2) EGR Valve to Intake Manifold O-Ring (Elring)
- (2) Supercharger Bleeder Screw (VW/Audi)

Optional

- (1) Supercharger Oil 150ML (Genuine)
- (2) Genuine Coolant Antifreeze G12 EVO 50/50 Mix 2 Gallon (3.78 Liters)



Part #'s

Intake Manifold Gasket (Upper)

 07-912-971-7D  /  07912971 7D  /  07 912 971 7D /  079129717D


PCV Valve Hose

06E-103-213 / 06E 103 213 / 06E103213


Coolant O-Ring to the Supercharger

06E-121-119-J / 06E121119 J / 06E 121 119 J / 06E121119J


Sealing Ring

06E-145-272-A / 06E145272 A / 06E 145 272 A / 06E145272A


Throttle Body Gasket

06E-145-272-C / 06E145272 C / 06E 145 272 C / 06E145272C

6E1-452-72C / 6E1 452 72C / 6E145272C


Engine Air Intake Hose Seal

06E-145-272-D / 06E145272 D / 06E 145 272 D / 06E145272D

6E1-452-72D / 6E1 452 72D / 6E145272D


Supercharger Intercooler

06E-145-621-AC / 06E145621 AC / 06E 145 621 AC / 06E145621AC

06E-145-621-T / 06E145621 T / 06E 145 621 T / 06E145621T


Intercooler Gasket

06E-145-723-H / 06E145723 H / 06E 145 723 H / 06E145723H


EGR Valve to Intake Manifold O-Ring

N90-521-604 / N90 521 604 / N90521604

N90-521-601 / N90 521 601 / N90521601

Intercooler Drain Plug

06E-127-535-B / 06E127535 B / 06E 127 535 B / 06E127535B
