Ringer Racing Clutch and Flywheel Kit – VW Mk6 2.0T Golf R

Kit includes:

• Ringer Racing Clutch Kit

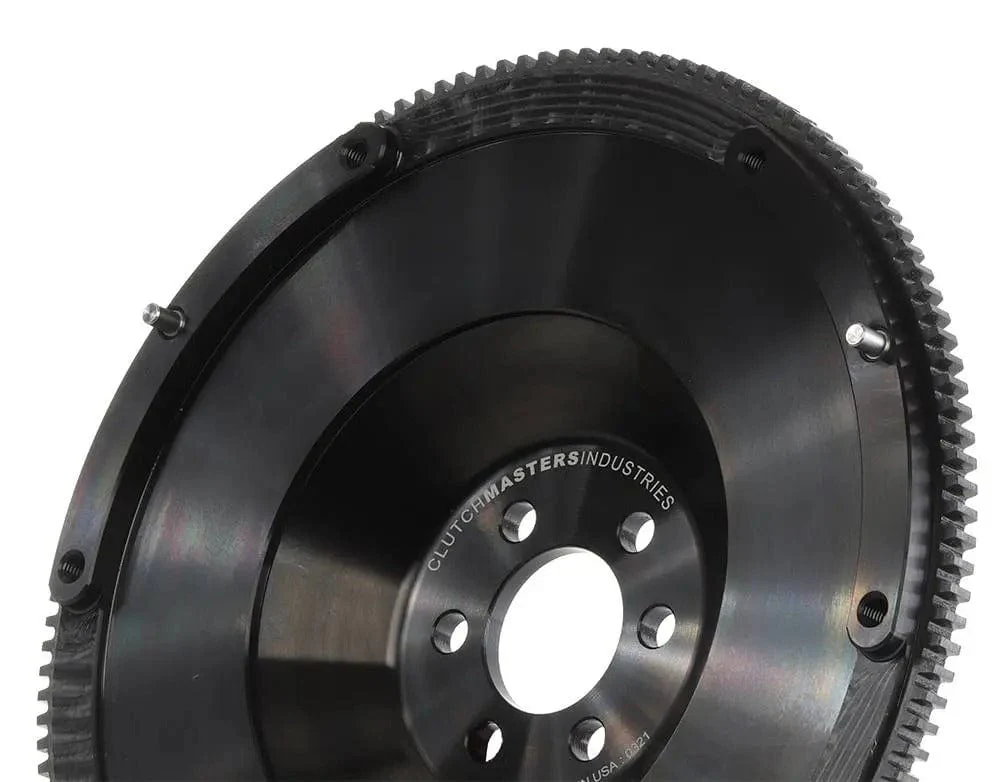

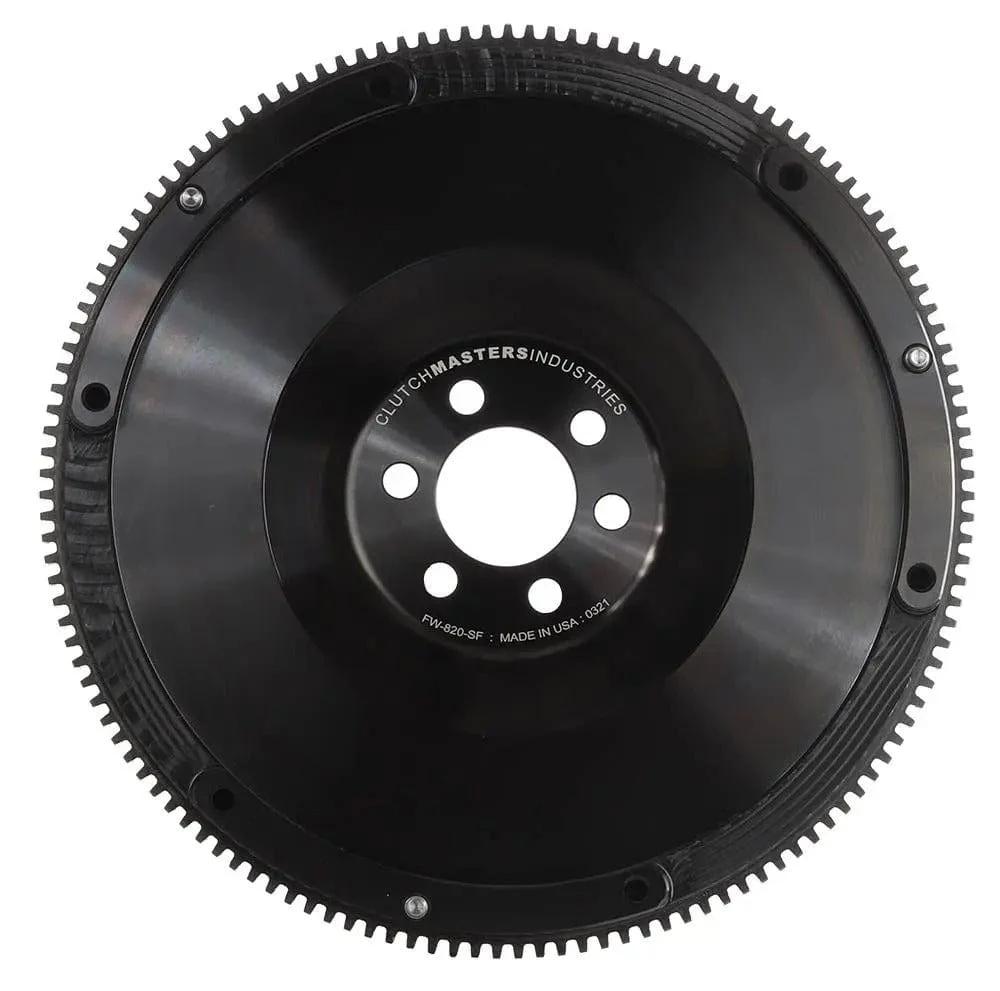

• CM Billet Steel Flywheel
• Alignment tool
• Pressure plate bolts and flywheel bolts

Does not include a throw-out bearing.





*Bleeder Block Options for use with OEM style bearing:

• CM Bleeder Block for stock line
• CM Bleeder Block kit with SS clutch line (replaces stock line)
• CM Performance Throw-out bearing kit with clutch line (replaces stock line)



Stage 3

• Heavy-duty street & racing system
• Holding capacity 125% over stock
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting

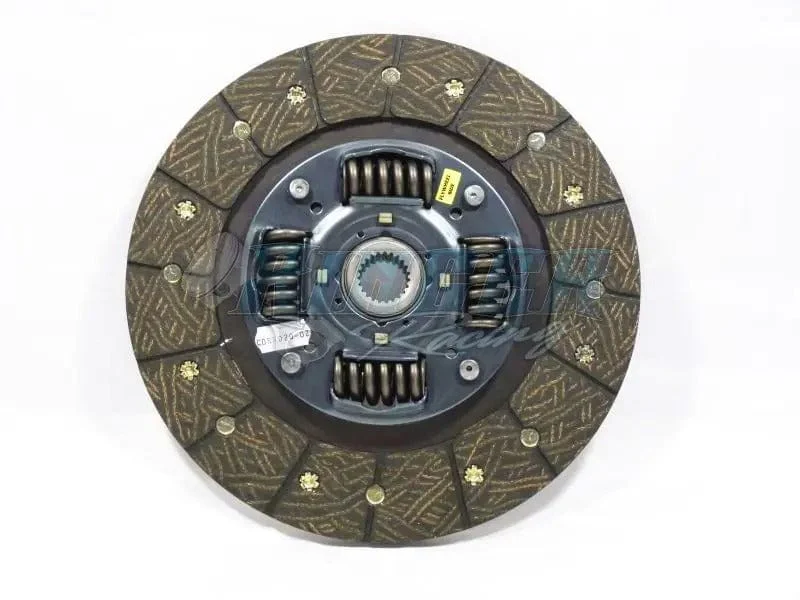

• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material



Stage 3+

• Heavy-duty street & racing system
• Holding capacity 150% over stock
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material
• Slightly stiffer pedal then Stage 3 and stage 4
• Note: Stage 3 disk with Stage 5 pressure plate



Stage 4

• Heavy-duty street & racing system
• Holding capacity 180% over stock
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides



Stage 5

• Heavy-duty street & racing system
• Holding capacity 270% over stock
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides
• Slightly stiffer pedal then Stage 3 and stage 4

Torque Rating at the Flywheel

• Stage 3 – 575 ft lbs
• Stage 3+ – 635 ft lbs
• Stage 4 – 735 ft lbs
• Stage 5 – 810 ft lbs





• Hardware torque specs
  Dab of loctite on all bolts
  10.9 or ARP flywheel bolts – 45 ft lb, 65 lb and then finish at 85 ft lb
  Pressure plate bolts  – 25 ft lb
