Ringer Racing Billet Aluminum Clutch Kit – VW MK8 2.0T 6 speed EVO4 engine cars


This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing

Applications:

• VW MK8 GTI 2.0T TSI EVO4
• VW MK8 Golf R 2.0T TSI EVO4

Kit includes:

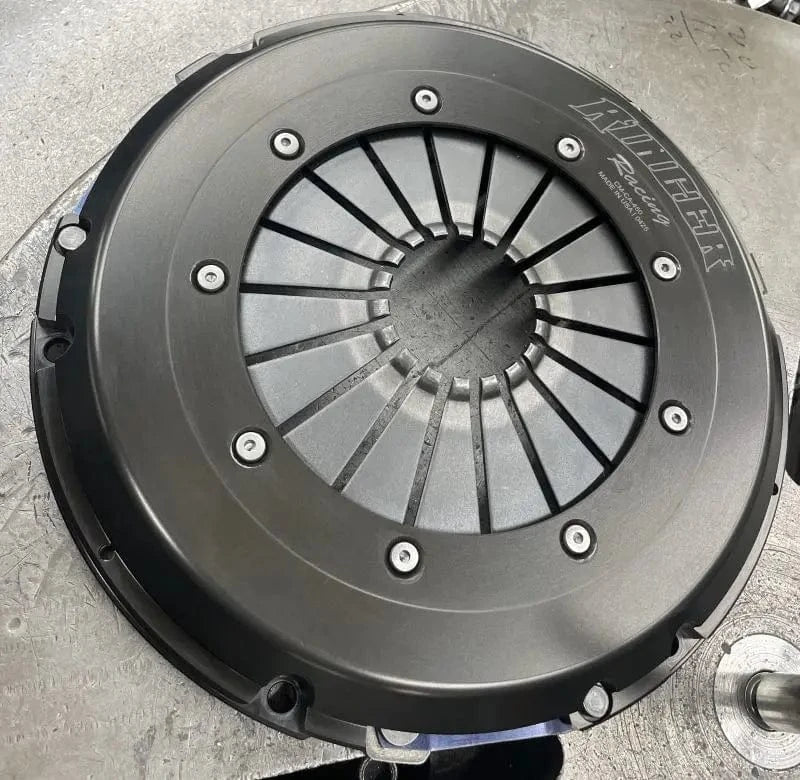

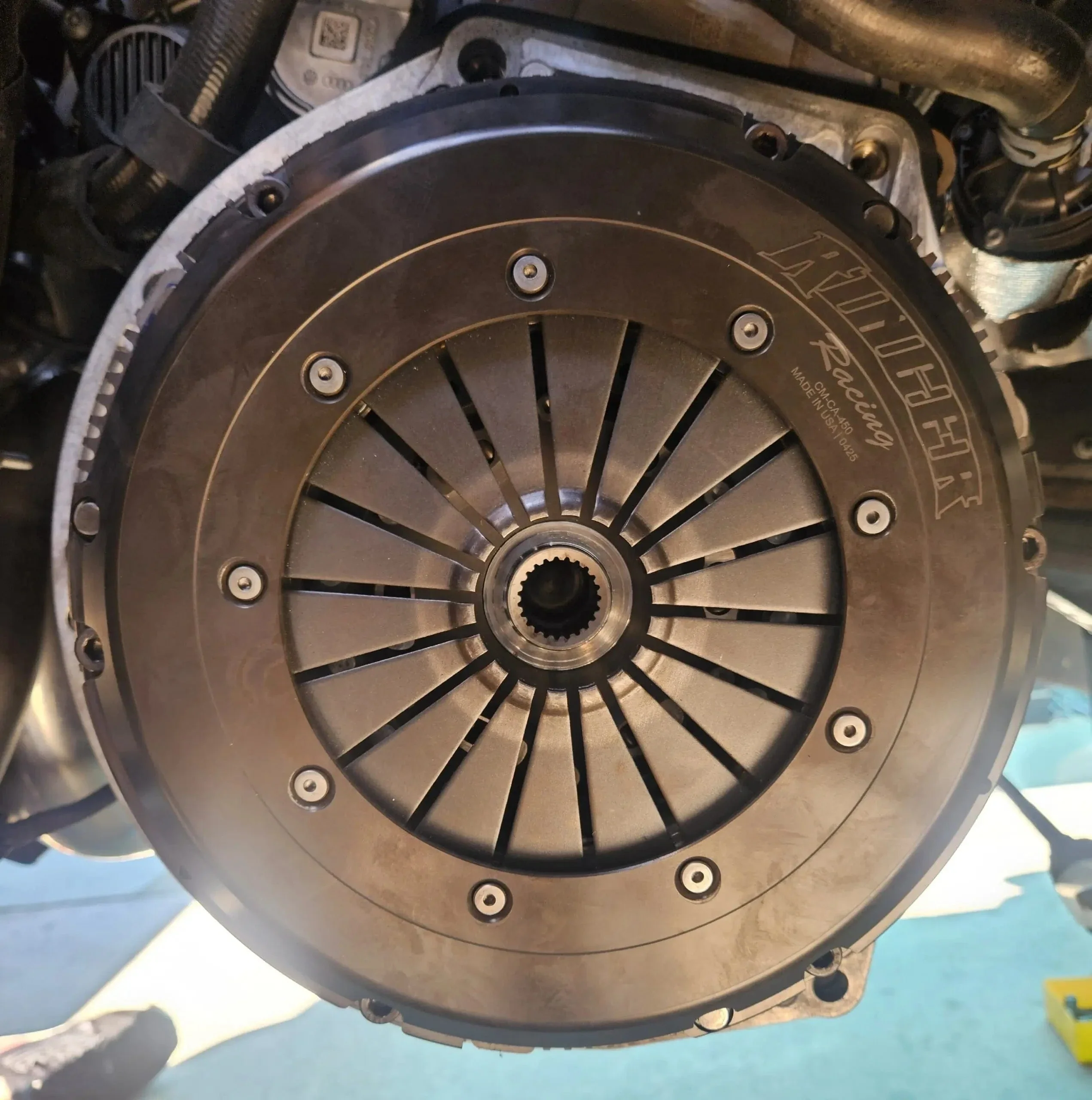

• Ringer Racing Billet Aluminum Pressure Plate

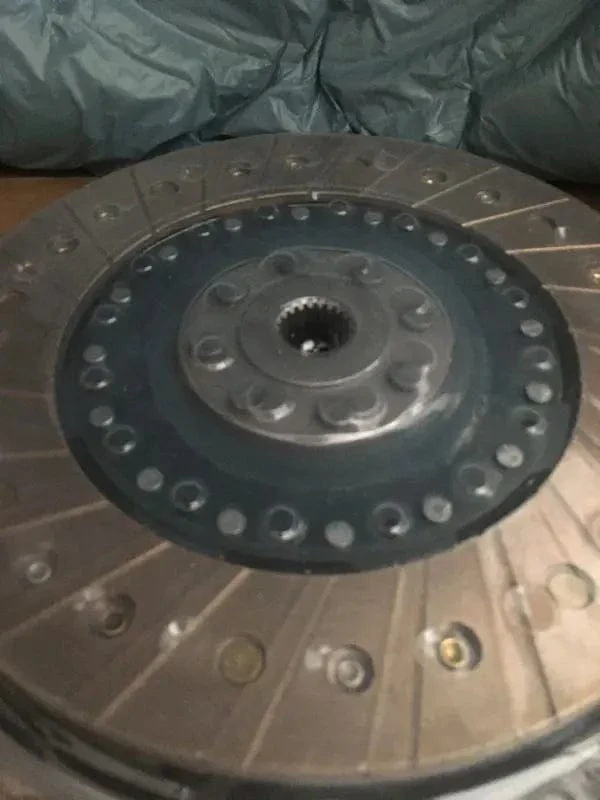

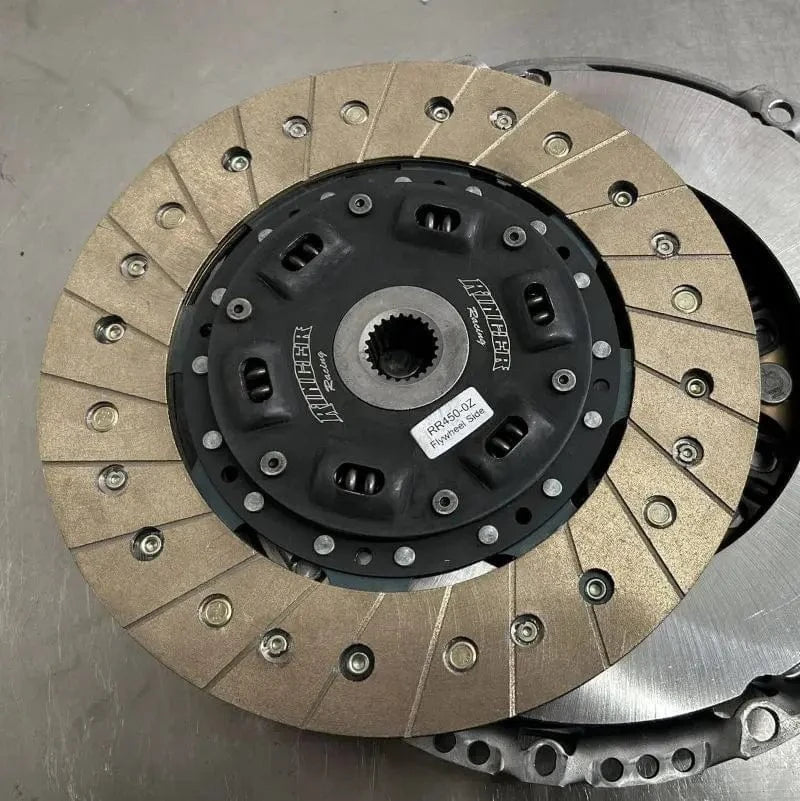

• Ringer Racing Clutch Disk
• Alignment tool

Kit does not include a throw-out bearing and does not include a flywheel.

*Optional Hydraulics:

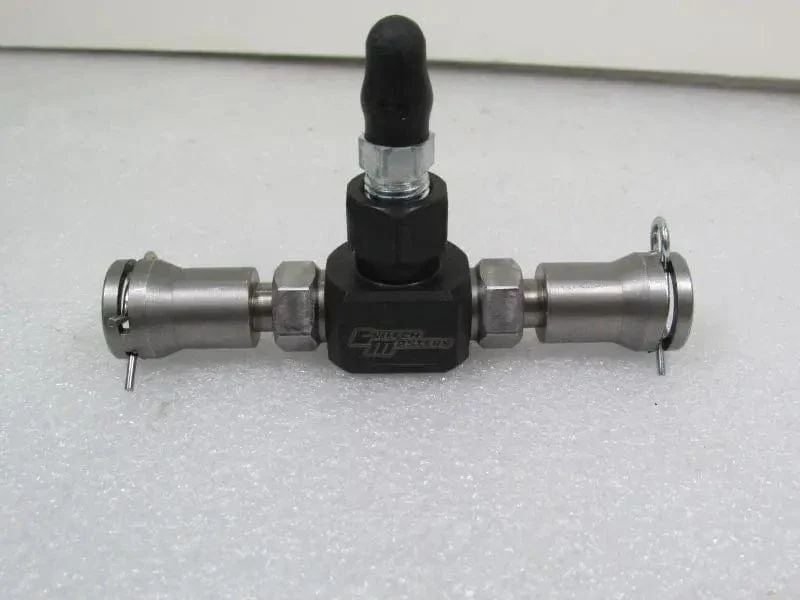

• CM Bleeder Block for use with stock line
• CM Bleeder Block kit with SS clutch line (replaces stock line)

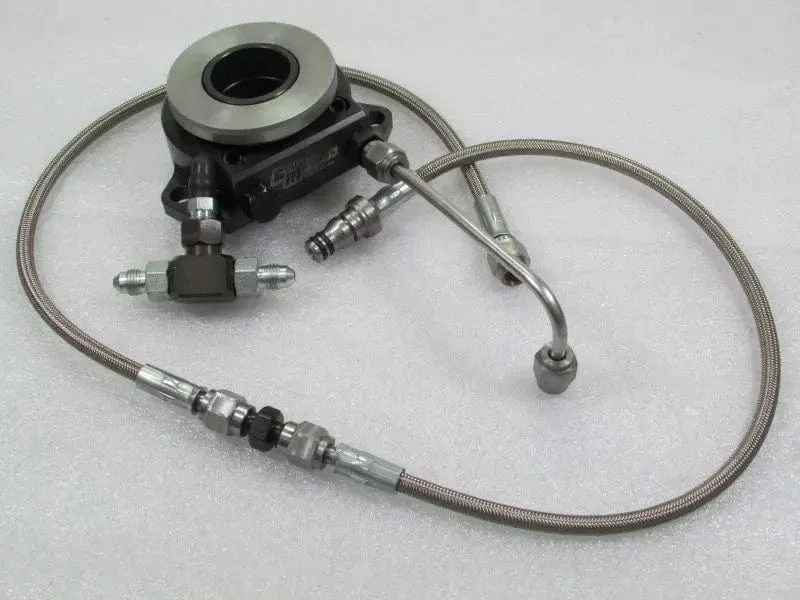

• CM Performance Throw-out bearing kit with clutch line (replaces stock line)

Stage 2

• Heavy-duty daily clutch
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic Material

Stage 2+

• Heavy-duty daily clutch
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic Material
• Slightly stiffer pedal then Stage 2

Stage 3

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material

Stage 3+

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material
• Slightly stiffer pedal then Stage 3 and stage 4
• Note: Stage 3 disk with Stage 5 pressure plate

Stage 4

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides

Stage 5

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides
• Slightly stiffer pedal then Stage 3 and stage 4

*Stage 4 and Stage 5 can be made to be used on a dual mass flywheel but the flywheel must be resurfaced to have a smooth surface.

Torque Rating at the Flywheel

• Stage 2 – 425 ft lbs.
• Stage 2+ – 490 ft lbs.
• Stage 3 – 575 ft lbs.
• Stage 3+ – 635 ft lbs.
• Stage 4 – 735 ft lbs.
• Stage 5 – 810 ft lbs.
