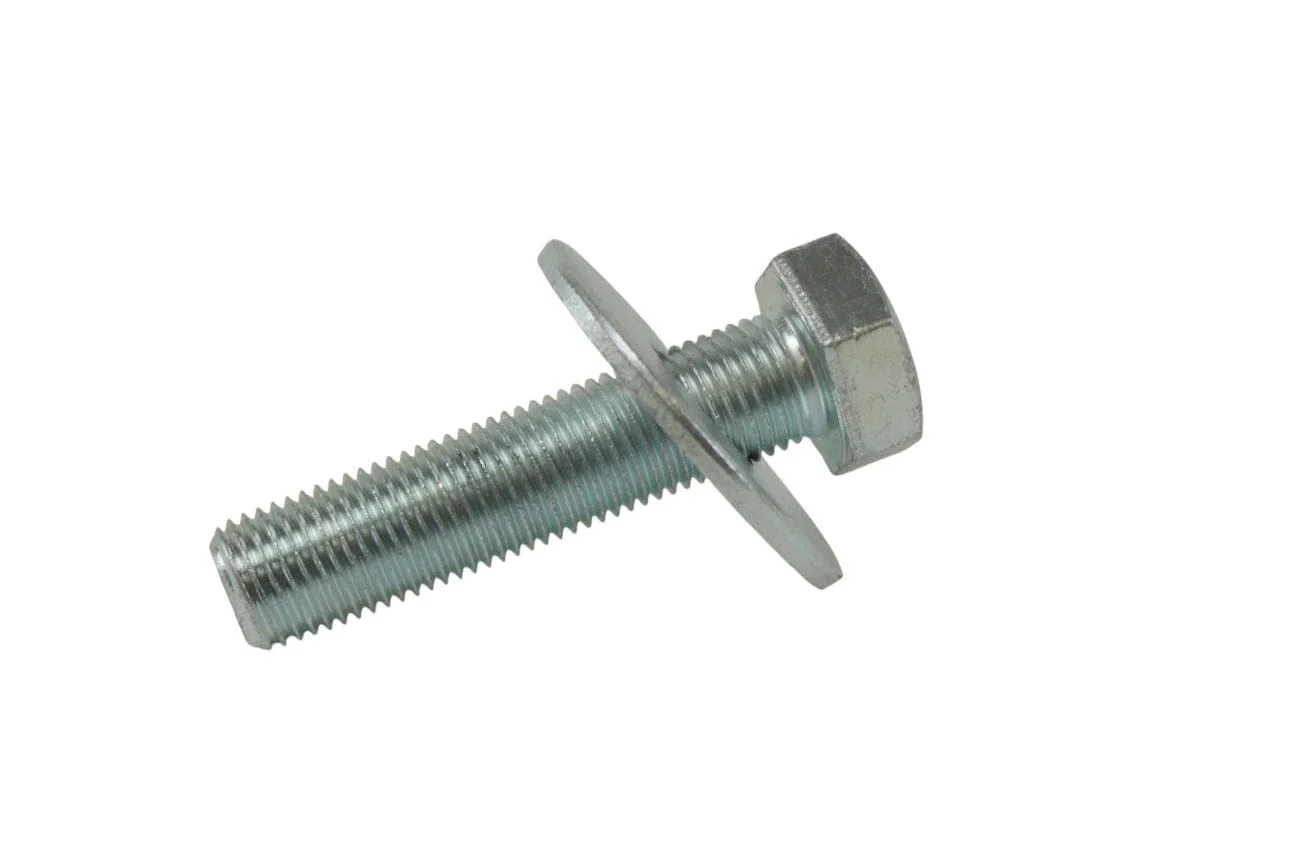

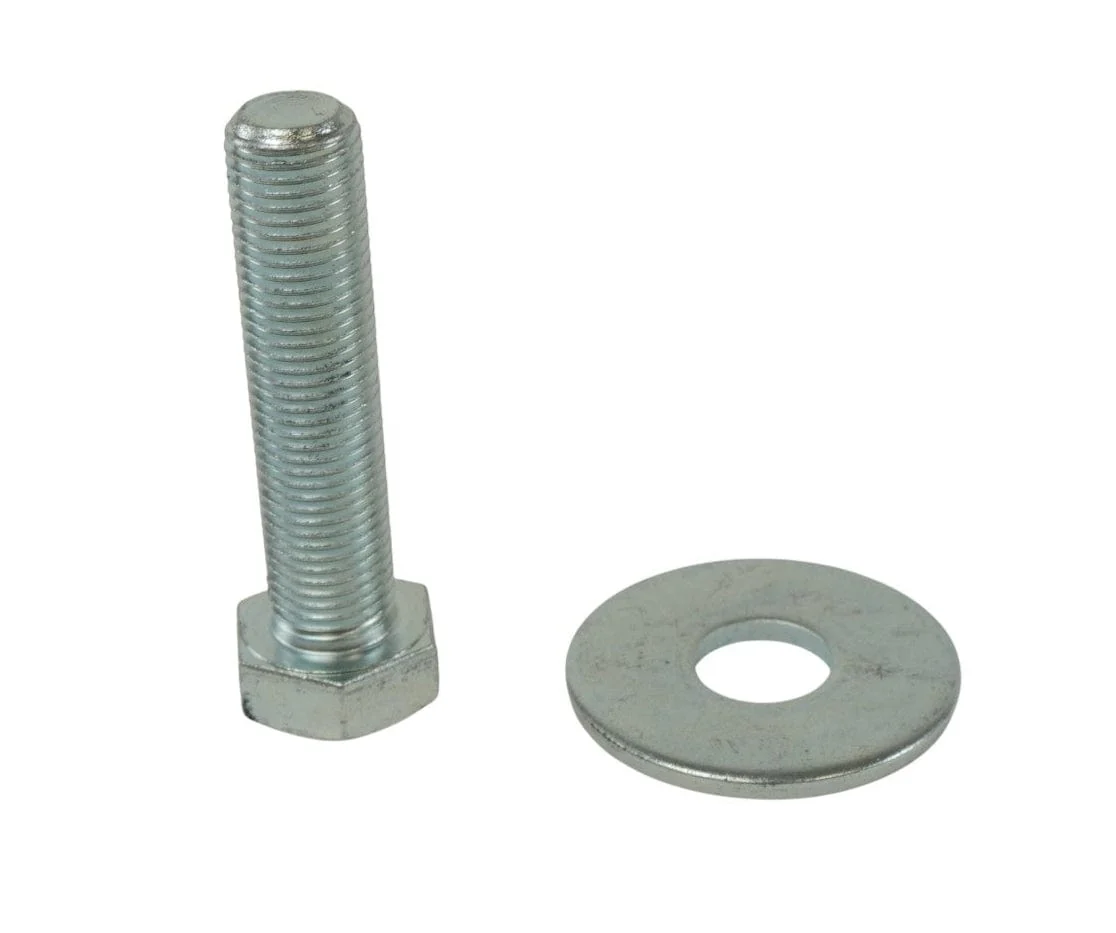

Rear Subframe Stretch Bolt (M14x1.5x60) - VW/Audi Mk4

⚠️ Disclaimer:
The original factory torque-to-yield (TTY) bolts for this application are no longer available (NLA). These are same-grade non-TTY replacements that meet or exceed OE strength.

When installing, do not follow the factory torque-plus-angle specification. Instead, use the standard torque values below and apply medium-strength blue threadlocker to clean threads for added safety if you want.

Bolt Size	Thread Pitch	Grade 8.8	Grade 10.9	Grade 12.9
M6	1.0	7 ft-lb	9 ft-lb	10 ft-lb
M8	1.25	16 ft-lb	22 ft-lb	26 ft-lb
M10	1.5	32 ft-lb	44 ft-lb	52 ft-lb
M12	1.75	57 ft-lb	74 ft-lb	89 ft-lb
M14	2.0	92 ft-lb	118 ft-lb	140 ft-lb
M16	2.0	144 ft-lb	181 ft-lb	218 ft-lb
