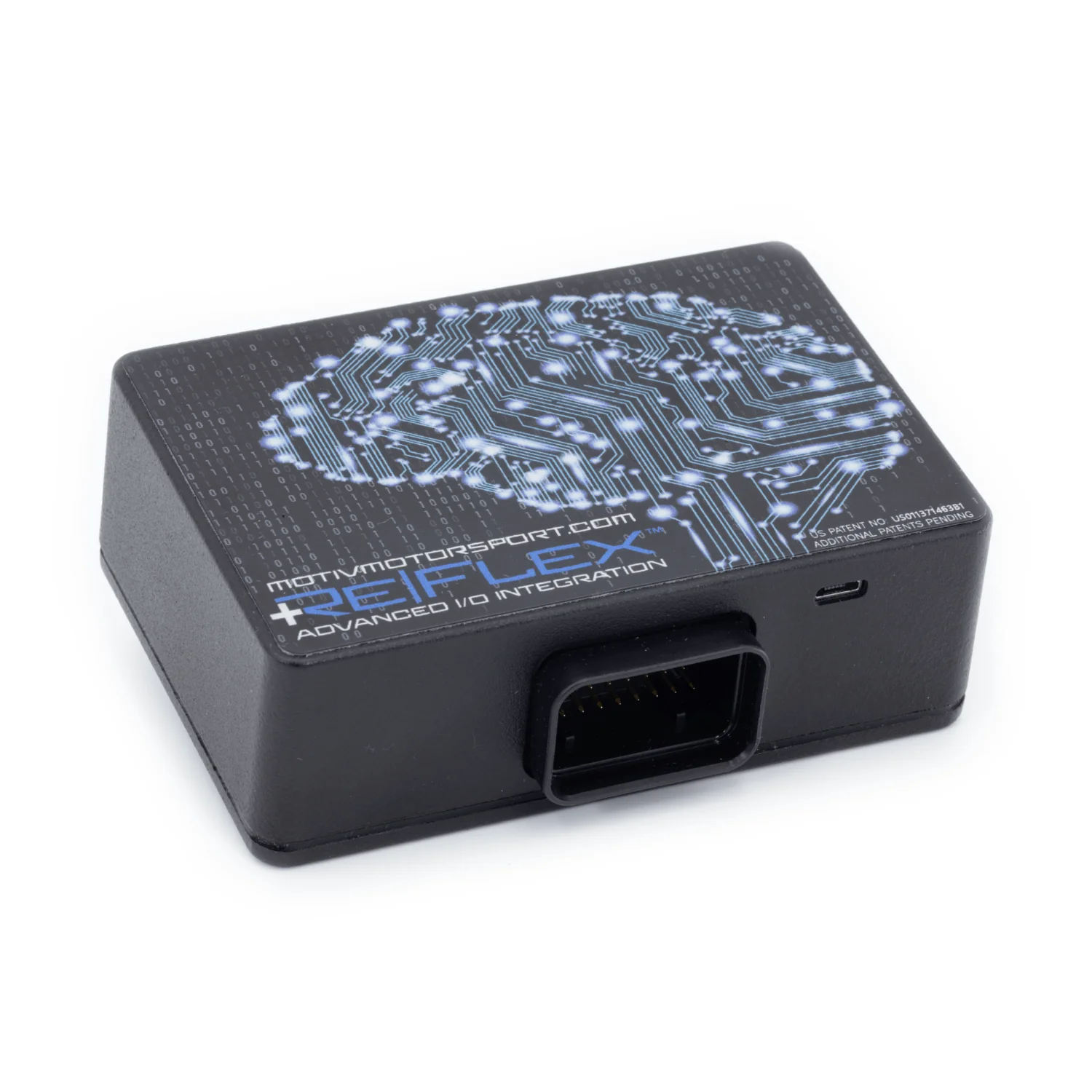

MOTIV ReFlex+ Control Unit

Control Options

• Standalone - no CanBUS communication
• Integrated CanBUS - MHD, BM3, MGF
• Advanced CanBUS - EcuTek and MHD+

Sequential Port Injection

• Up to 8 cylinders
• Real-time injector status and diagnostics

Inputs

• 1 Digital 0-500kHz for Ethanol (output over CanBUS)
• 1 Digital 0-20kHz for Crank Signal
• 1 Digital 0-20kHz for Cam Signal
• 1 Analog 0-5v ~6Hz Low-Pass MAP Sensor
• 1 Analog 0-5v ~6Hz Low-Pass Sensor
• 1 Analog 4-20mA current ~30Hz Low-Pass Fuel Pressure
• 1 Analog 4-20mA current ~30Hz Low-Pass Pressure Sensor

Outputs

• 2 Low-Side, 0-1000Hz, 4A cont, 8A max
• 2 Low-Side, 0-1000Hz, 3A cont, 6A max
• 1 Digital to Analog Expanision
• CanBUS Lo/High Comms
