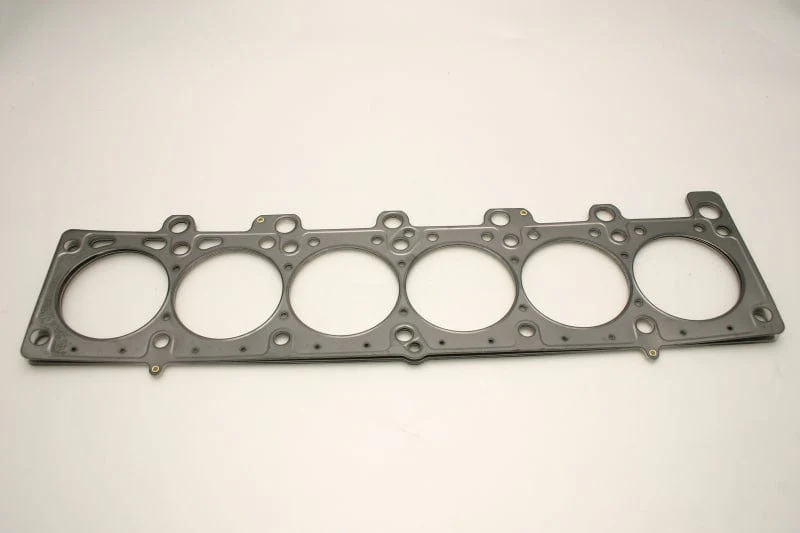

Cometic BMW M20 2.5L / 2.7L 85mm .051 inch MLS Head Gasket 325i / 525i

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.051". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year	Make	Model	Submodel
1986-1988	BMW	325	Base
1984-1987	BMW	325e	Base
1987-1993	BMW	325i	Base
1987-1991	BMW	325is	Base
1988-1991	BMW	325iX	Base
1989-1990	BMW	525i	Base
1982-1988	BMW	528e	Base
